Data Flow Through Hyrax

Accessing Data on Disk

Hyrax uses Dataset and DataProvider classes as the interface between data on disk and PyTorch. The dataset class reference covers how to write your own Dataset.

Datasets are the direct interface between the Hyrax ecosystem and the underlying data. A dataset is responsible for handling data on a per-item level (managing specific data types, labels, and other metadata) via get_<field>(idx) methods. The DataProvider wraps one or more datasets, handles batching and collation, and passes data onward toward training or inference. This separation of concerns allows great flexibility in how data is handled and processed.

The collate Function

The collate function is responsible for taking a batch of per-item dictionaries from the DataProvider and combining them into a single batch dictionary. By default, collate stacks each field’s values into a numpy array (using np.stack when shapes are uniform), producing a dictionary of numpy arrays. The function is customizable and has options to handle ragged data with padding. For a hands-on example of writing a custom collate, see the custom collation notebook.

The prepare_inputs Function

The prepare_inputs static method on the model class is responsible for converting the collated batch dictionary into the format the model expects – typically a tuple of numpy arrays (e.g. (images, labels)). This is the last step where the user can control how data is transformed before it reaches the model. See the custom prepare_inputs notebook for examples, or the model class reference for the method signature.

Note

prepare_inputs should return numpy arrays, not PyTorch tensors. Hyrax handles the numpy-to-tensor conversion and device placement automatically in the training and inference engines.

Note

The older function name to_tensor is deprecated but still supported for backward compatibility. Please use prepare_inputs in new code.

Training and Inference Pipelines

After prepare_inputs, data follows one of two paths:

Training — Hyrax converts the numpy arrays to PyTorch tensors, moves them to the target device (CPU/GPU), and passes them to the model’s train_batch method via a PyTorch Ignite engine. The model processes the data, computes a loss, and returns a dictionary of metrics (which must include a "loss" key). Validation and testing follow the same pattern using validate_batch and test_batch respectively.

Inference — The same conversion pipeline applies: numpy arrays become tensors on the target device, and the model’s infer_batch method is called. The output tensors are converted back to numpy arrays and written to disk in Lance format. For production deployments without PyTorch, models can be exported to ONNX and run via the engine verb.

Data Format Summary

Stage	Format
dataset.get_*(idx)	Single item: numpy array, scalar, or string
Before collate	List of nested dict. Each item: {source_name: {field: value, ...}, "object_id": str}
After collate Before prepare_inputs	Dict of numpy arrays: {source_name: {field: np.ndarray, ...}} Each contains a whole batch
After prepare_inputs	Tuple of numpy arrays (or single np.ndarray). Shape is model-specific.
Inside model methods	Tuple of torch.Tensor on device
Inference output (saved to disk)	Numpy arrays in Lance format

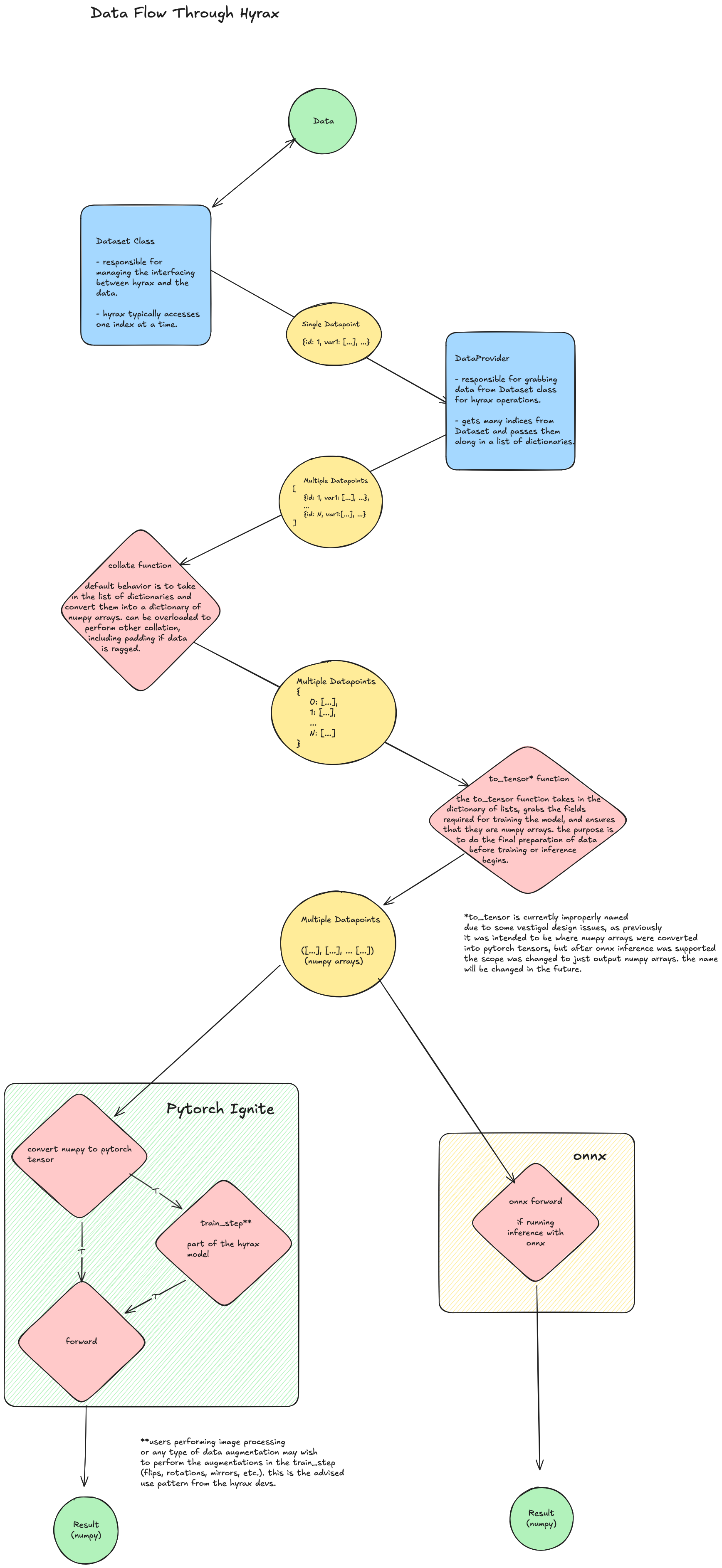

Data Flow Diagram
