Using UMAP to Reduce Inference Output

Using UMAP to Reduce Inference Output#

UMAP (Uniform Manifold Approximation and Projection) is a dimensionality-reduction algorithm that projects high-dimensional data into 2 or 3 dimensions while preserving local structure. This makes it ideal for visualizing the latent space learned by an unsupervised model.

In this notebook we will:

  1. Train a simple autoencoder on random data.

  2. Run inference to obtain latent-space representations.

  3. Apply UMAP to reduce those representations to 2D.

  4. Load and plot the UMAP output.

  5. Show how to switch to 3D output.

1. Setup#

Create a Hyrax instance and configure it to use the built-in HyraxAutoencoder model with the HyraxRandomDataset. The random dataset lets us run the full pipeline quickly without downloading real data.

[1]:

from hyrax import Hyrax
from hyrax.config_utils import find_most_recent_results_dir

h = Hyrax()

[2]:

# Use an autoencoder (unsupervised) so inference produces a latent vector.
h.set_config("model.name", "HyraxAutoencoder")

# Point at the random dataset — no download required.
data_request = {
    "train": {
        "data": {
            "dataset_class": "HyraxRandomDataset",
            "data_location": ".",
            "fields": ["image"],
            "primary_id_field": "object_id",
            "split_fraction": 1.0,
        },
    },
    "infer": {
        "data": {
            "dataset_class": "HyraxRandomDataset",
            "data_location": ".",
            "fields": ["image"],
            "primary_id_field": "object_id",
        },
    },
}
h.set_config("data_request", data_request)

# Train for just 1 epoch to keep things fast.
h.set_config("train.epochs", 1)

2. Train and Infer#

Train the autoencoder and then run inference to produce latent-space representations for every item in the dataset.

[ ]:

model = h.train()
inference_results = h.infer()

3. Run UMAP (2D)#

By default Hyrax reduces to 2 components (n_components = 2). Calling h.umap() fits a UMAP model on a sample of the inference output, then transforms the entire dataset.

[4]:

umap_results = h.umap()

[2026-04-23 13:56:12,791 hyrax.verbs.umap:INFO] Saving UMAP results to /Users/qiyuwang/Desktop/hyrax/docs/pre_executed/results/20260423-135612-umap-Ides
[2026-04-23 13:56:12,795 hyrax.verbs.umap:INFO] Fitting the UMAP
[2026-04-23 13:56:15,561 hyrax.verbs.umap:INFO] Saving fitted UMAP Reducer

[2026-04-23T20:56:16Z WARN  lance::dataset::write::insert] No existing dataset at /Users/qiyuwang/Desktop/hyrax/docs/pre_executed/results/20260423-135612-umap-Ides/lance_db/results.lance, it will be created
[2026-04-23 13:56:16,845 hyrax.datasets.result_dataset:INFO] Optimizing Lance table after 1 batches
[2026-04-23 13:56:16,847 hyrax.datasets.result_dataset:INFO] Lance table optimization complete
[2026-04-23 13:56:16,847 hyrax.verbs.umap:INFO] Finished transforming all data through UMAP

h.umap() returns a ResultDataset that you can index directly. Each element is a NumPy array with shape (n_components,).

[5]:

import numpy as np

# Stack all UMAP embeddings into a single array.
embeddings = np.array([umap_results[i] for i in range(len(umap_results))])
print(f"Shape: {embeddings.shape}  (samples × components)")

Shape: (100, 2)  (samples × components)

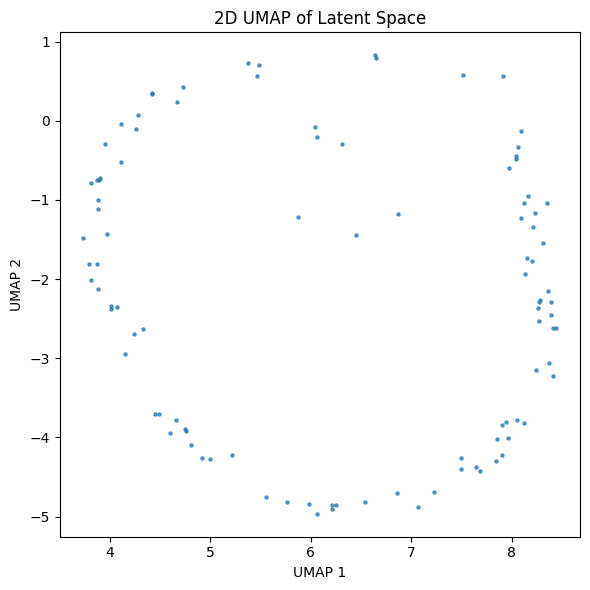

4. Plot the 2D Embedding#

A quick scatter plot of the two UMAP dimensions.

[6]:

import matplotlib.pyplot as plt

fig, ax = plt.subplots(figsize=(6, 6))
ax.scatter(embeddings[:, 0], embeddings[:, 1], s=5, alpha=0.7)
ax.set_xlabel("UMAP 1")
ax.set_ylabel("UMAP 2")
ax.set_title("2D UMAP of Latent Space")
plt.tight_layout()
plt.show()
../_images/pre_executed_using_umap_11_0.png

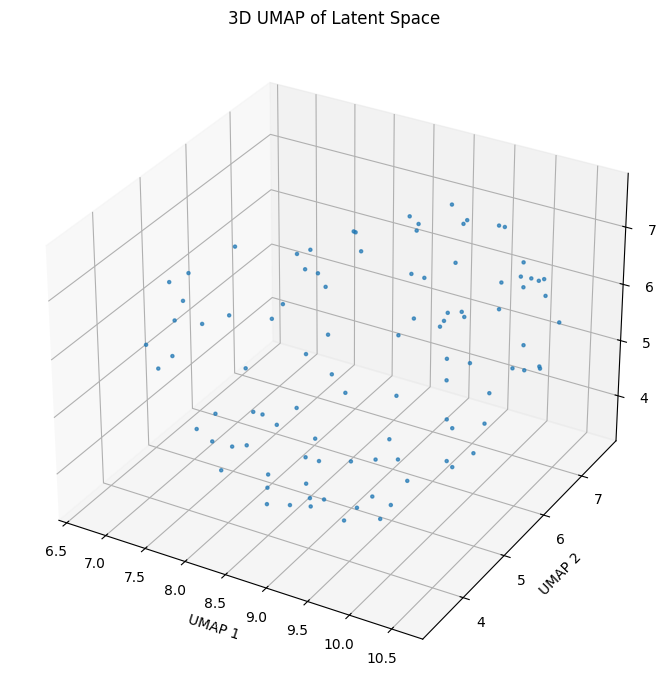

5. Switch to 3D#

To produce a 3-dimensional embedding instead, set n_components to 3 before calling h.umap() again.

[7]:

h.set_config("umap.UMAP.n_components", 3)
umap_results_3d = h.umap()

# save the path for loading the model
result_dir_3d = find_most_recent_results_dir(h.config, "umap")

[2026-04-23 13:56:17,052 hyrax.verbs.umap:INFO] Saving UMAP results to /Users/qiyuwang/Desktop/hyrax/docs/pre_executed/results/20260423-135617-umap-GMwL
[2026-04-23 13:56:17,054 hyrax.verbs.umap:INFO] Fitting the UMAP
[2026-04-23 13:56:17,113 hyrax.verbs.umap:INFO] Saving fitted UMAP Reducer

[2026-04-23T20:56:17Z WARN  lance::dataset::write::insert] No existing dataset at /Users/qiyuwang/Desktop/hyrax/docs/pre_executed/results/20260423-135617-umap-GMwL/lance_db/results.lance, it will be created
[2026-04-23 13:56:17,287 hyrax.datasets.result_dataset:INFO] Optimizing Lance table after 1 batches
[2026-04-23 13:56:17,288 hyrax.datasets.result_dataset:INFO] Lance table optimization complete
[2026-04-23 13:56:17,288 hyrax.verbs.umap:INFO] Finished transforming all data through UMAP

[8]:

embeddings_3d = np.array([umap_results_3d[i] for i in range(len(umap_results_3d))])
print(f"Shape: {embeddings_3d.shape}  (samples × components)")

fig = plt.figure(figsize=(7, 7))
ax = fig.add_subplot(111, projection="3d")
ax.scatter(embeddings_3d[:, 0], embeddings_3d[:, 1], embeddings_3d[:, 2], s=5, alpha=0.7)
ax.set_xlabel("UMAP 1")
ax.set_ylabel("UMAP 2")
ax.set_zlabel("UMAP 3")
ax.set_title("3D UMAP of Latent Space")
plt.tight_layout()
plt.show()

Shape: (100, 3)  (samples × components)
../_images/pre_executed_using_umap_14_1.png

6. Loading pre-exisiting UMAP model#

When running the umap verb, the trained reducer is saved in the results directory as ./umap.pickle. We can reuse a previously trained UMAP reducer model to ensure consistent results and faster workflow.

To do this, pass the saved model path via the model_path argument:=

[9]:

umap_results_load = h.umap(model_path=result_dir_3d / "umap.pickle")

[2026-04-23 13:56:17,376 hyrax.verbs.umap:INFO] Saving UMAP results to /Users/qiyuwang/Desktop/hyrax/docs/pre_executed/results/20260423-135617-umap-ks9o
[2026-04-23 13:56:17,380 hyrax.verbs.umap:INFO] Loading pre-existing UMAP model from /Users/qiyuwang/Desktop/hyrax/docs/pre_executed/results/20260423-135617-umap-GMwL/umap.pickle

[2026-04-23T20:56:17Z WARN  lance::dataset::write::insert] No existing dataset at /Users/qiyuwang/Desktop/hyrax/docs/pre_executed/results/20260423-135617-umap-ks9o/lance_db/results.lance, it will be created
[2026-04-23 13:56:17,564 hyrax.datasets.result_dataset:INFO] Optimizing Lance table after 1 batches
[2026-04-23 13:56:17,565 hyrax.datasets.result_dataset:INFO] Lance table optimization complete
[2026-04-23 13:56:17,565 hyrax.verbs.umap:INFO] Finished transforming all data through UMAP

The resulting shape should be the same as the 3D result.

[10]:

# Stack all UMAP embeddings into a single array.
embeddings_3d_load = np.array([umap_results_load[i] for i in range(len(umap_results_load))])
print(f"Shape: {embeddings_3d_load.shape}  (samples × components)")

Shape: (100, 3)  (samples × components)

It is also possible to specify a model_path directly in the configuration. If it is set, running the umap verb will automatically load and use the existing reducer.

This allows us to reuse a saved model without passing the path explicitly each time.

[11]:

# set the model_path in config
h.set_config("umap.model_path", str(result_dir_3d / "umap.pickle"))
umap_results_load_config = h.umap()

# Stack all UMAP embeddings into a single array.
embeddings_3d_load_config = np.array(
    [umap_results_load_config[i] for i in range(len(umap_results_load_config))]
)
print(f"Shape: {embeddings_3d_load_config.shape}  (samples × components)")

[2026-04-23 13:56:17,616 hyrax.verbs.umap:INFO] Saving UMAP results to /Users/qiyuwang/Desktop/hyrax/docs/pre_executed/results/20260423-135617-umap-Wugy
[2026-04-23 13:56:17,618 hyrax.verbs.umap:INFO] Loading pre-existing UMAP model from /Users/qiyuwang/Desktop/hyrax/docs/pre_executed/results/20260423-135617-umap-GMwL/umap.pickle

[2026-04-23T20:56:17Z WARN  lance::dataset::write::insert] No existing dataset at /Users/qiyuwang/Desktop/hyrax/docs/pre_executed/results/20260423-135617-umap-Wugy/lance_db/results.lance, it will be created
[2026-04-23 13:56:17,780 hyrax.datasets.result_dataset:INFO] Optimizing Lance table after 1 batches
[2026-04-23 13:56:17,781 hyrax.datasets.result_dataset:INFO] Lance table optimization complete
[2026-04-23 13:56:17,781 hyrax.verbs.umap:INFO] Finished transforming all data through UMAP

Shape: (100, 3)  (samples × components)

Basic checks (e.g., file validity and dimensions compatibility) are handled automatically, but it is important to check that the provided model is meaningful for current dataset and task.

Key Configuration Options#

All UMAP settings live under the [umap] section of the Hyrax config. The most commonly adjusted parameters are:

Config key

Default

Description

umap.UMAP.n_components

2

Number of output dimensions (2 or 3).

umap.UMAP.n_neighbors

15

Balances local vs. global structure.

umap.fit_sample_size

1024

Number of points used to fit the UMAP model.

umap.parallel

false

Use multiprocessing during the transform step.

umap.model_path

false

Path to a pre-existing umap reducer model.

See the UMAP documentation for the full list of parameters you can pass under umap.UMAP.
